Rotten Exterior Trim on a Chatham, NJ Home
Repair, Phase, or Replace? A Real Inspection, Real Options, Real Numbers.
| Town | Service | House Type | Year Built | Published |
|---|---|---|---|---|
| Chatham, NJ | Exterior Trim | Colonial (dormers + bay) | 2008 | 2026 |
Exterior trim rot on homes built between 2000 and 2012 in northern New Jersey is typically not an isolated issue. It is a system-wide failure of finger-jointed pine trim that has reached the end of its service life. This is not a repair issue. It is a material failure across the entire trim system.
A 2008 colonial in Chatham presented with rot across seven distinct trim locations — corner posts, dormer casings, dormer fascia, rake boards, window surrounds, and the bay window. All seven traced to the same root cause: finger-jointed pine at moisture-contact points with no adequate end-grain or base-joint protection. Typical cost to replace exterior trim on a house like this in northern New Jersey: $80,000–$100,000.
Signs Your Trim Is Failing
These are the conditions that show up on finger-jointed pine trim as it fails. You don’t need to be on a ladder to spot most of them.
- Paint cracking at joints
Longitudinal cracking along glue joints is the first visible sign. The paint film breaks at the joint before the wood deteriorates — by the time you see it, moisture has already been entering.
- Soft spots at window sills
Press a key or screwdriver against the sill with moderate pressure. If it gives, the wood fiber has broken down. Window sills collect water from above and are typically the first surround section to fail.
- Separation at trim seams
Where two trim boards meet — corner post joints, rake board terminations, casing corners — separation means the glue joint has failed from moisture infiltration.
- Rot at roofline intersections
Any trim board that terminates at or near a shingle surface is in continuous moisture contact. Open gaps, paint loss, and dark staining at the base are active rot indicators.
- Peeling paint at dormers or rake ends
Paint that delaminates in sheets (rather than chips) at dormer casings or rake board ends confirms moisture has penetrated the wood substrate, not just the surface.
What We Found
Finger-jointed pine was the standard exterior trim material on northern New Jersey homes built before roughly 2010. It performs fine when dry and properly maintained. The problem shows up around year 8–12, when paint film begins to crack at the glue joints, moisture enters, and end grain — the most vulnerable point of any wood member — starts to deteriorate. Once it starts, it advances.

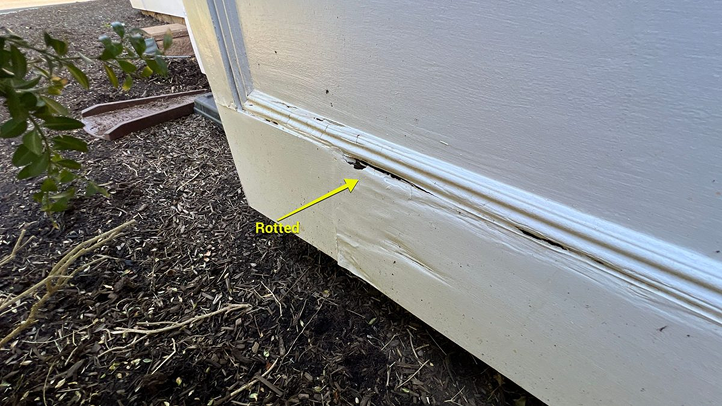

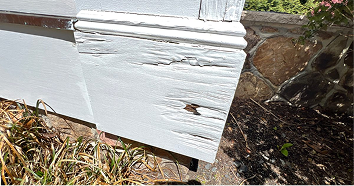

Corner posts: Two locations showed active rot where the post base sits near the roofline. Without a PVC cap or flashed termination detail, finger-jointed pine at this location absorbs water at both the end grain and the glue joints. One post had deteriorated through the full face of the board — structural integrity compromised, full replacement required from the base upward.

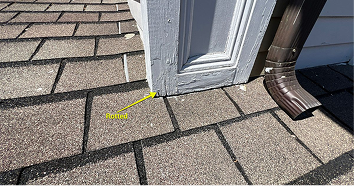

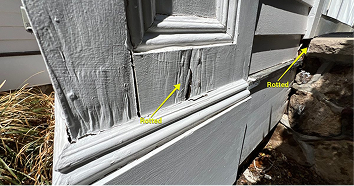

Dormer casings: Wherever a casing trim board bears directly on a shingle surface, moisture accumulates at the base. The condition was identical across multiple dormers — not an isolated defect, but a systemic condition of the trim system. Proper construction at a dormer-to-roof detail requires PVC trim or a flashed and elevated termination. Neither was present.

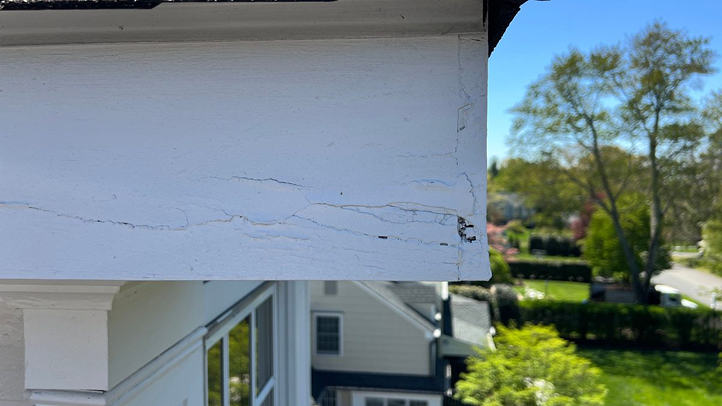

Dormer fascia: Surface cracking, longitudinal splitting, and paint delamination across a significant portion of the fascia length. A deteriorated fascia exposes the rafter tails behind it to moisture. Once water reaches structural framing, the scope expands well beyond surface trim replacement.

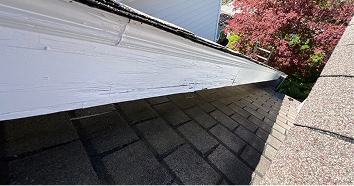

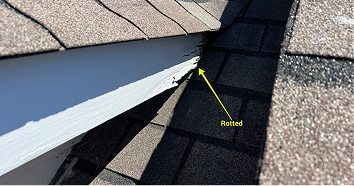

Rake boards: Active rot at the lower ends where they terminate near the roof surface. End grain and face checks visible, boards separating at joints. Once end grain rot is established in a rake board, it advances up the full length from the exposed end. Trimming back to solid wood and re-terminating in the same location produces the same failure — the full length must be replaced.

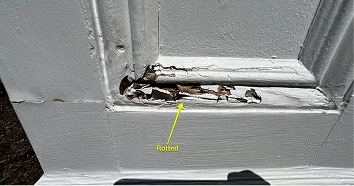

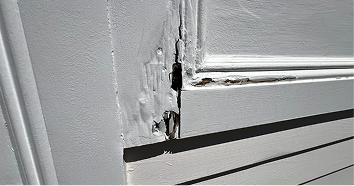

Window surrounds and bay window: Multiple surrounds showed active rot at the sill and base trim — open cracks, fiber separation, and at several locations,through-holes where the material had completely failed. The bay window showed three separate rotted sections from grade: the sill board, the sub-sill, and the base corner trim.
Once rot reaches through the trim, it creates a direct path for water into the wall assembly — affecting sheathing, insulation, and potentially interior framing. At any through-rot location, the extent of behind-trim damage must be assessed before new material goes up. That assessment can change the scope and the cost.
Three Decisions
For a house with seven affected areas — some with structural compromise, at least two with through-rot and active water paths into the wall — the options reduce to three decisions.
| Decision | What It Does | Cost Range | Time Horizon |
|---|---|---|---|
| Replace it once (full Azek PVC) | Eliminates the failure mode entirely. No end-grain exposure. No rot cycle. One job, done. | $80,000– $100,000 | Permanent |
| Control it over time (phased replacement) | Replace assemblies by priority — worst first. Spread cost over 2–3 seasons while stopping active damage. | Varies by phase scope | 2–3 seasons |
| Delay it (epoxy repair + repaint) | Fill visible rot, close paint surface. Buys time. Same locations recur. Not a fix — a deferral. | $15,000– $20,000 | 2–3 seasons |
Replace it at once. PVC trim doesn’t rot. It has no end grain, doesn’t absorb moisture, and doesn’t require the same termination protection wood requires at roof intersections or window sills. On a colonial this size — dormers, bay window, detailed corner profiles — full replacement with Azek PVC typically runs $80,000–$100,000. You replace it once and the cycle is over.
Control it over time. Replace complete trim assemblies in priority sequence — the locations with through-rot and structural compromise first. This requires walking the house together and building a logical sequence; piecemeal replacement without a plan creates gaps, mismatched profiles, and paint matching problems. Done correctly, it stops the active damage while spreading the cost across seasons.
Delay it. Epoxy consolidant fills the voids and closes the paint surface, typically buying two to three seasons. What it can’t do is change the failure mechanism. The end grain is still exposed. The moisture source is still there. The rot restarts. At this scope, expect $15,000–$20,000. Appropriate if you have a defined sale timeline or a short-term budget constraint — as long as it's understood as a deferral, not a solution.
How to Decide
Two questions determine the right path. First: how far has rot progressed behind the trim at the through-rot locations? Surface-trim damage and wall-assembly damage are different scopes with different costs — you can’t know which you have without pulling the affected trim. Second: how long are you planning to stay? If you’re selling in two years, epoxy and paint may be the right financial answer. If you’re ten years out, spending $80K–$100K now to eliminate the cycle costs less than three rounds of repairs.
If you’re in a house built between 2000 and 2012 in Morris, Essex, Somerset, or Union County — there is a reasonable chance you have the same material developing the same conditions in the same locations. Finger-jointed pine was standard for the era. The failure mode is predictable. What varies is how far along it is.
An inspection will tell you exactly which category you’re in — and whether this is something to address now or plan for.
Frequently Asked Questions
How do I know if my trim rot is cosmetic or structural?
Press a screwdriver or key against the wood with moderate pressure. If it gives, structural integrity is compromised — that’s not a patching situation. At corner posts and rake boards, look for joint separation and paint failure running along the grain. At window sills, look for through-holes or sections where paint has fully detached from the wood. Any through-rot means moisture is already reaching the wall assembly behind the trim.
Why does rot concentrate at the bottom of trim boards?
End grain is the most moisture-vulnerable point of any wood trim member. At the base of a corner post, the lower end of a rake board, or a window sill, raw end grain is in direct or near-direct contact with a moisture source. Moisture enters end grain far faster than face grain, and the glue joints in finger-jointed pine fail when saturated. Rot starts at the base and advances upward through the board.
Can you just patch and repaint rotten trim?
Epoxy consolidant can address active rot and buy time — typically two to three seasons. What it cannot do is change the failure mechanism. If a board is rotting because its end grain is in contact with a moisture source and has no protection, filling the void and repainting leaves the same conditions in place. The rot restarts as soon as the filler cracks or the paint breaks. Repair is a deferral, not a fix.
What is Azek PVC trim and why does it solve this problem?
Azek is a cellular PVC trim product that is completely impervious to moisture. It has no end grain, doesn’t absorb water, and doesn’t require the same termination protection that wood trim requires at roof intersections or grade-adjacent locations. It machines, installs, and paints like wood. Replacing finger-jointed pine with Azek eliminates the rot cycle rather than resetting it.
What does it cost to replace exterior trim on a colonial in northern New Jersey?
On a house of this type and complexity — 2,500–3,500 square feet, dormers, bay window, detailed corner post profiles — full exterior trim replacement with Azek PVC typically runs $80,000–$100,000 in northern New Jersey. Epoxy repair and repaint at this scope typically runs $15,000–$20,000 and buys two to three seasons. Phased replacement cost varies by scope per phase and sequencing.
How long does exterior trim replacement take on a house this size?
A full replacement on a house of this complexity typically runs two to three weeks for an experienced crew. Any window surround replacement requires an assessment of behind-trim conditions before installation — if sheathing or framing repair is needed, that extends the timeline.
